Applicable Industries：
Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
Showroom Location：
Egypt, United Kingdom, United States, Philippines, Indonesia, Thailand, Kenya, Argentina, South Korea, Sri Lanka, South Africa, Kazakhstan, Nigeria, Uzbekistan, Malaysia
Production Capacity：
350kg/h, 400kg/h, 450kg/h, 500kg/h
Overview
PRODUCTS SHOW
PRODUCT PARAMETER
Model | Capacity (KG/H) | Power(KW) | Overall Size(M) |
TXF-50 | 50 | 20 | 30*5*3 |
TXF-80 | 80 | 50 | 50*5*3 |
TXF-100 | 100 | 70 | 70*5*3 |
TXF-500 | 500 | 120 | 90*5*3 |

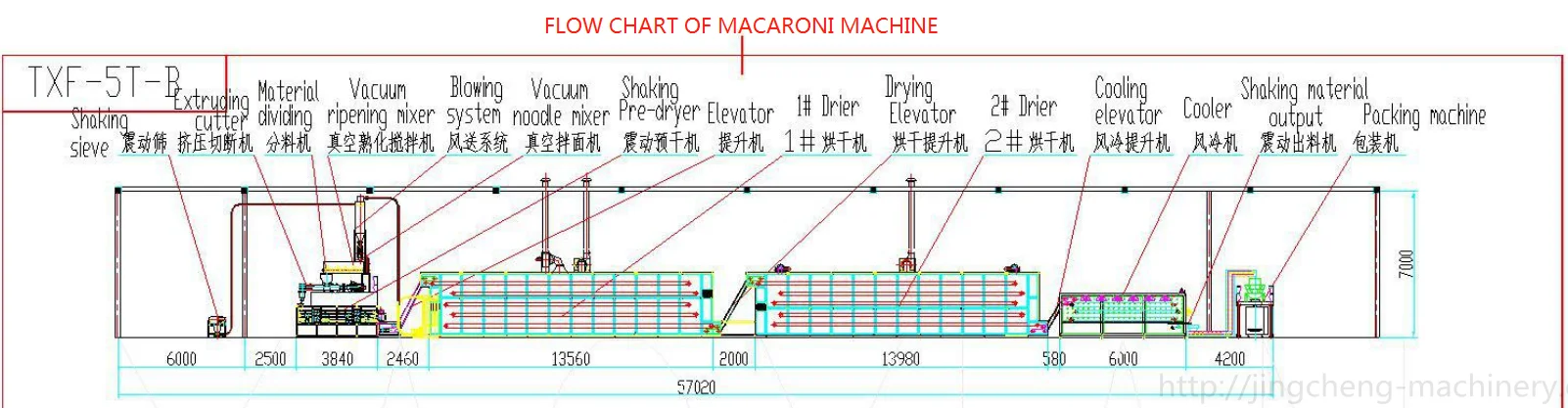

FLOWCHAT
DETAILS IMAGES

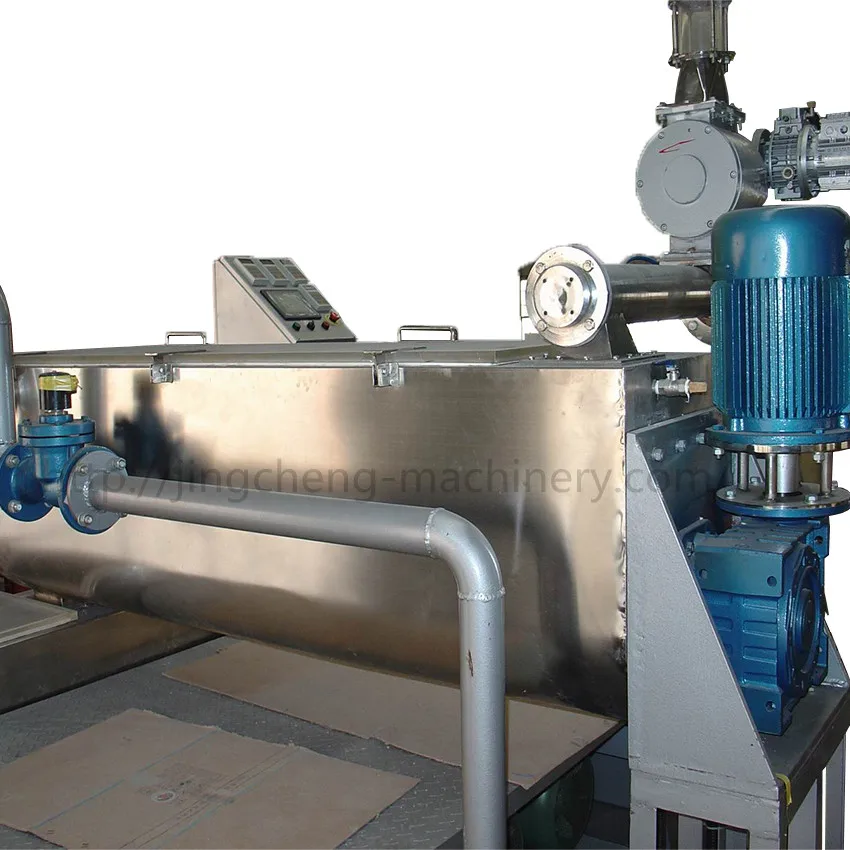

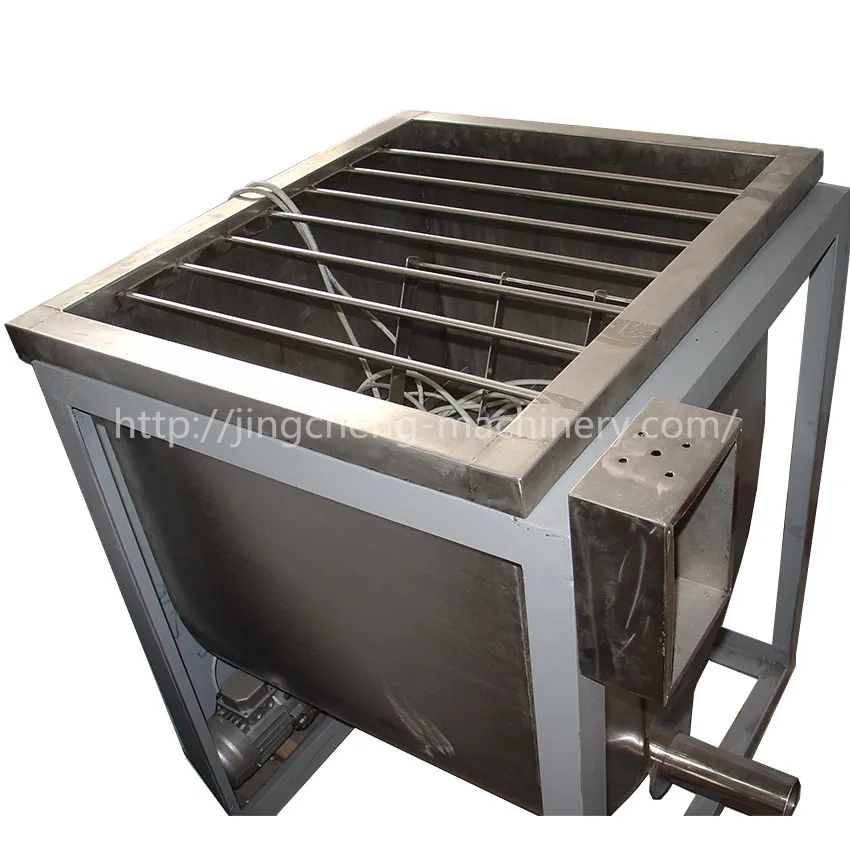

Vacuum mixer ZJ-5T-B 1 unit
1.Spec (mm）: 1500(L) × 400(W) × 480(H) 2.Materials: Ripen mixing cylinder: SUS304# Mixing axis and mixing vane: Stainless steel. Up cover: organic glass. Vacuum system including: vacuum pump 1 piece, vacuum jar 1 piece, vacuum pipeline 1 set, electromagnetism valve 1 piece and vacuum meter 1 piece etc. 3. Power: 5.5kw（main motor）+ 4kw（vacuum pump）

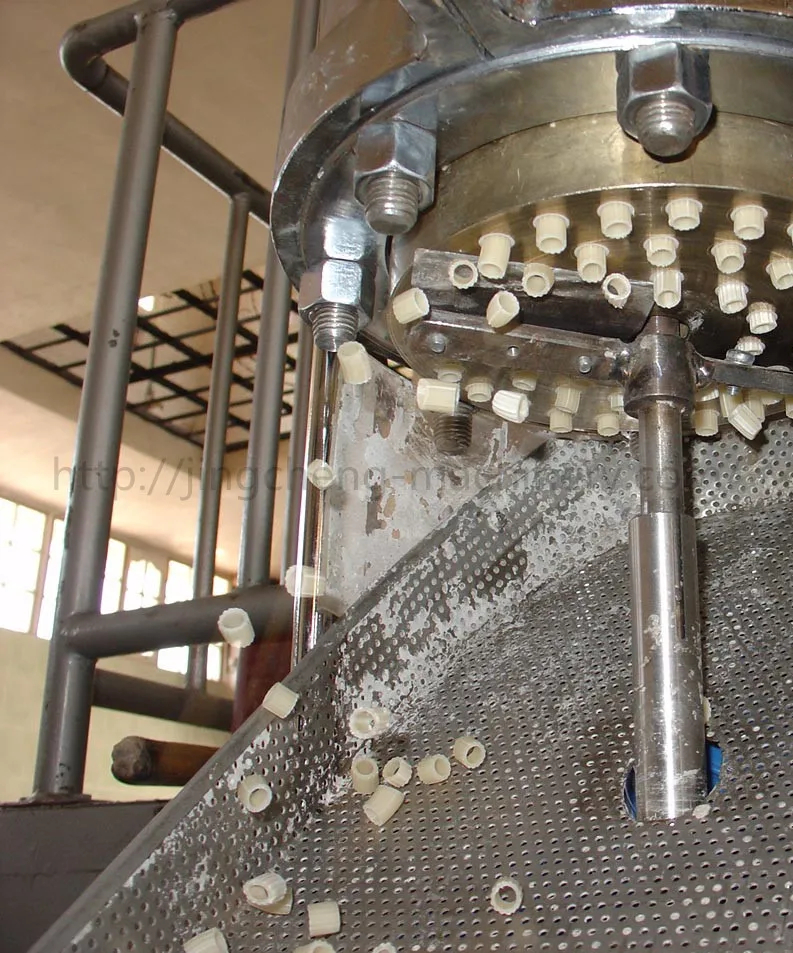

Forming extruder: JF-5T-B 1 unit
1. Spec（mm）: 1940(L) × 400(W) × 670 (H) 2. Materials: flour extruding conveyer: Stainless steel Extruding head: stainless steel Spiral thruster: stainless steel Bearing base: carbon steel 3. Including: flour extruding mould head and mould core 5 sets. 4. Power: 11kw（main motor）, frequency conversion speed + 0.09kw（cutter）, adjust Voltage speed + 0.37kw（cooling pump）
Vibrating pry-dryer: ZY-5T-4M unit
1. Spec（mm）: 4290(L) × 1000(W) × 1500 (H) 2. Materials:
Vibrating conveying board: stainless steel Frame body: carbon steel Heat preservation door and hanging board: carbon steel + heat insulation. Flirt arm, connect arm, crank shaft and chain wheel: to be use carbon steel. 0~0.6Mpa 1 piece, compress meter:
0~0.4Mpa 2 pieces. 3. Power: 1.5kw frequency conversion speed + fan 0.1 kw x 2(fan).

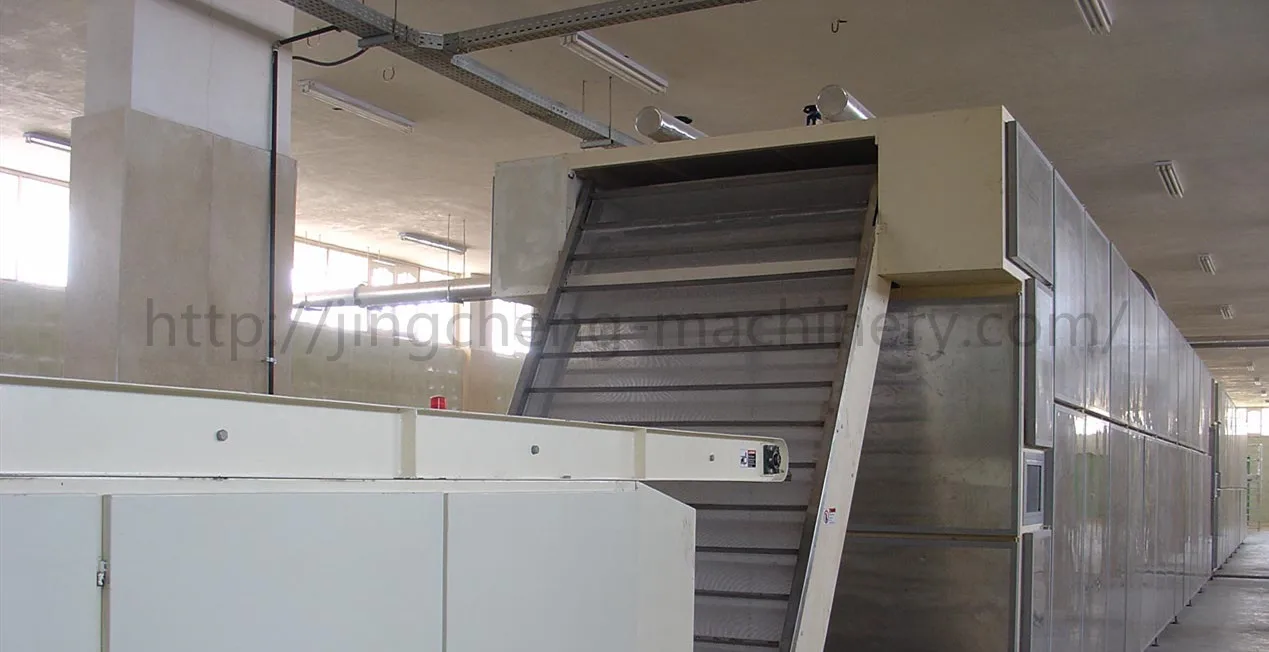

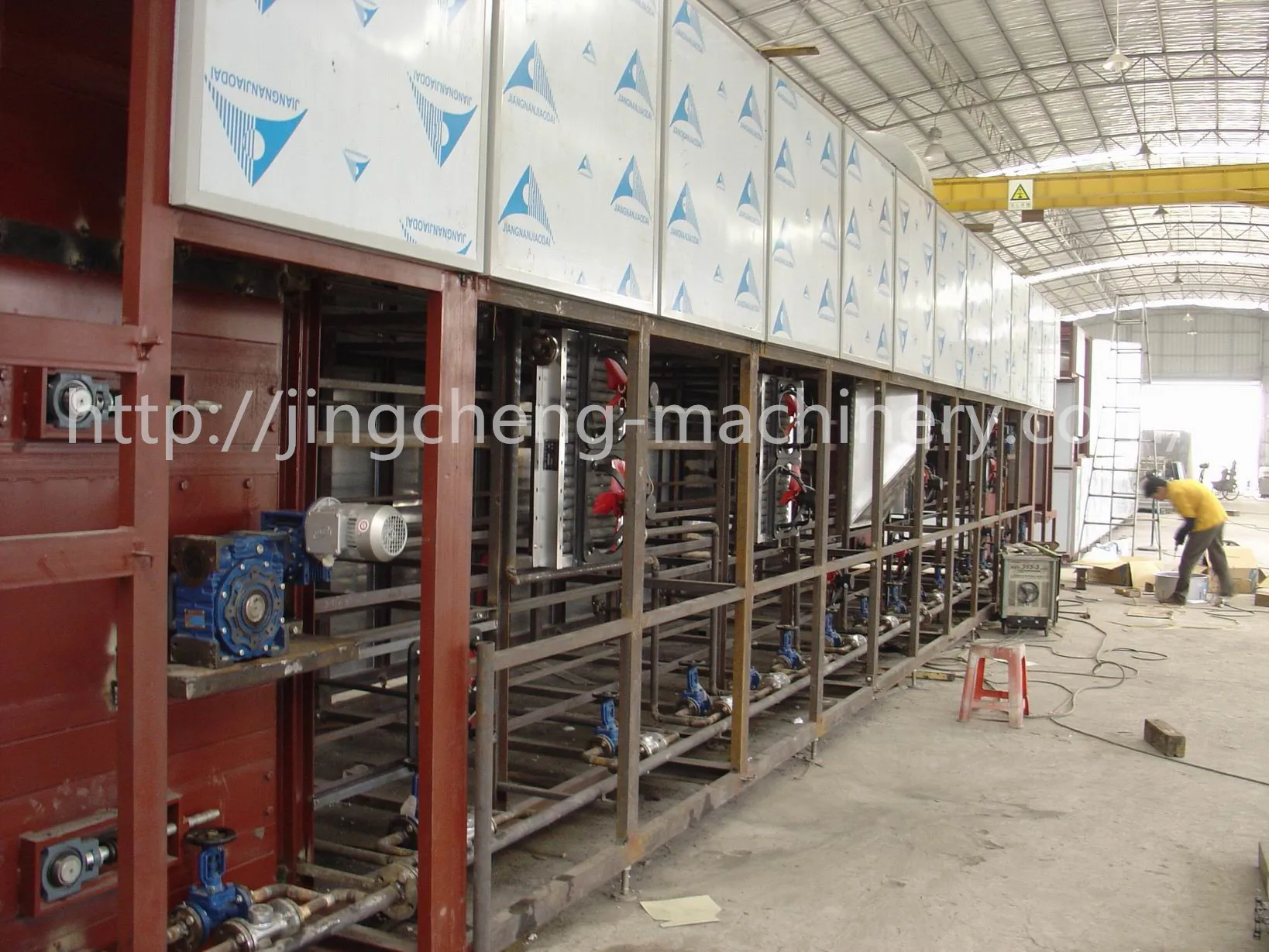

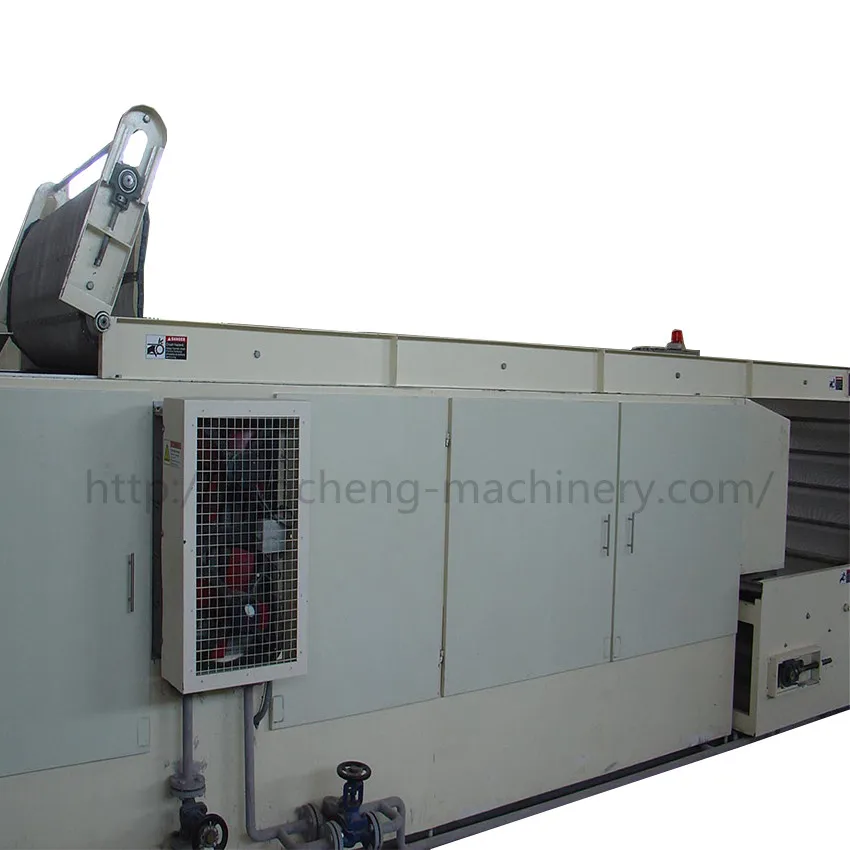

Net type drying machine WDH-5T-B 1unit
1. Spec（mm）: 29540(L)×1550(W) ×3100(H) 2. Materials: Drying net: 1200（W）SUS304# Transfer conveying chain: C2052 40Mn Conveying guide rail, transmission part and frame body ues carbon steel.
Fan cooling machine FL-5T-B 1 unit
1. Spec（mm）: 6000(L)×1400(W) ×2180(H) 2. Materials: Cooling transfer net: 1000（W）SUS304# Cooling transfer chain: C2052 stainless steel Cooling transfer guide rail: 40×40×4 stainless steel
Drive parts and frame body: carbon steel
DIFFERENT SAMPLES
