MACARONI MACHINE

Overview

    Our vision is simple but bold – we aspire to create the supply chain of the future to help our customers navigate the food machinery and to make life better for one billion people in the supply chain.

Product Features and Uses    Macaroni originates from Italy. It is the favorite food similar to Chinese noodles by most people in the world.There are many kinds of macaroni, which are generally made of starch-rich grains or coarse-ground wheat flour, crushed, mixed with raw materials, extruded and dried to produce various kinds of noodles with good taste and unique flavor.    JingCheng Machinery macaroni machine equipment production line, through the change of different molding mold and cutting system, can produce various shapes of pasta products: square straight cut, round straight cut, square diagonal cut, round diagonal cut, spiral, shell, long noodles and other different food particles.The main ingredients are flour and starch, etc., extruded, dried, and cooled.

  We provide CAD drawings of our products. We can customize the production line according to your actual needs.We have a team of engineers with more than 10 years of work experience to provide you with the most professional services.

DETAILS IMAGES

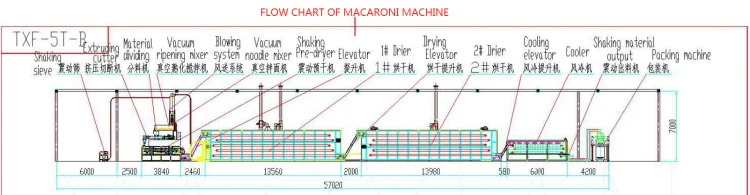

   The production line mainly includes the following equipment configuration:

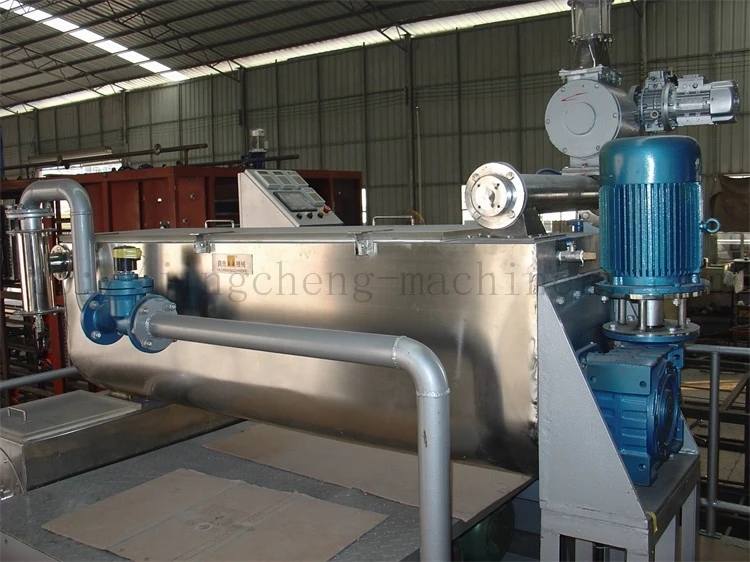

Vacuum mixer ZJ-5T-B 1 unit

   1.  Spec (mm）: 1500(L) × 400(W) × 480(H)
   2.  Materials: Ripen mixing cylinder: SUS304# Mixing axis and mixing vane: Stainless steel.
        Up cover: organic glass.

        Vacuum system including: vacuum pump 1 piece, vacuum jar 1 piece, vacuum pipeline 1 set, electromagnetism valve 1 piece and vacuum meter 1 piece etc.
   3. Power: 5.5kw（main motor）+ 4kw（vacuum pump）

Forming extruder: JF-5T-B 1 unit
   1.  Spec（mm）: 1940(L) × 400(W) × 670 (H)
   2.  Materials: flour extruding conveyer: Stainless steel
        Extruding head: stainless steel
        Spiral thruster: stainless steel
        Bearing base: carbon steel
    3.  including: flour extruding mould head and mould core 5 sets.
    4.  power: 11kw（main motor）, frequency conversion speed + 0.09kw（cutter）, adjust Voltage speed + 0.37kw（cooling pump）

Vibrating pry-dryer: ZY-5T-4M 1 unit

    1.  Spec（mm）: 4290(L) × 1000(W) × 1500 (H)
    2.  Materials: Vibrating conveying board: stainless steel
         Frame body: carbon steel
         Heat preservation door and hanging board: carbon steel + heat insulation.Flirt arm, connect arm, crank shaft and chain wheel: to be use carbon steel. 0~0.6Mpa 1 piece, compress meter: 0~0.4Mpa 2 pieces.
    3.  Power: 1.5kw frequency conversion speed + fan 0.1 kw x 2(fan).

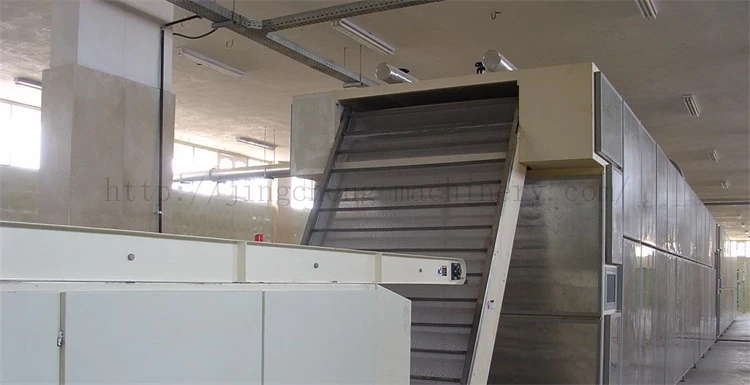

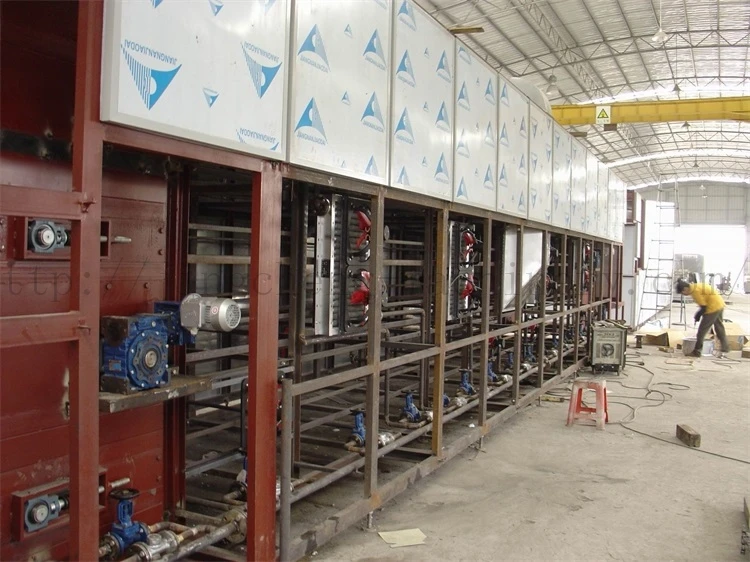

Net type drying machine WDH-5T-B 1unit

    1.  Spec（mm）: 29540(L)×1550(W) ×3100(H)
    2.  Materials: Drying net: 1200（W）SUS304#
         Transfer conveying chain: C2052 40Mn
         Conveying guide rail, transmission part and frame body ues carbon steel.

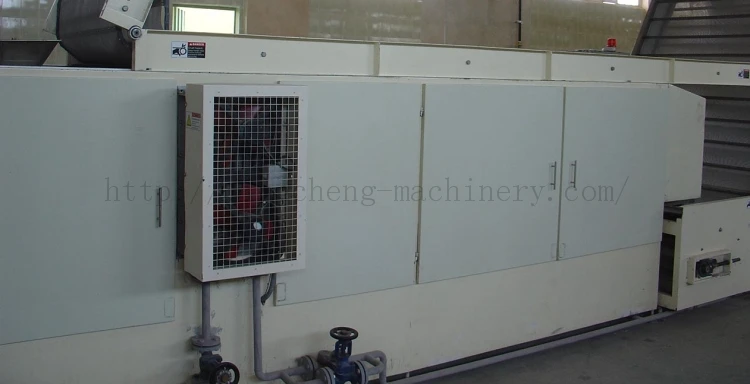

Fan cooling machine FL-5T-B 1 unit

   1.  Spec（mm）: 6000(L)×1400(W) ×2180(H)
   2.  Materials: Cooling transfer net: 1000（W）SUS304#
                           Cooling transfer chain: C2052 stainless steel
                           Cooling transfer guide rail: 40×40×4 stainless steel
                           Drive parts and frame body: carbon steel

DIFFERENT SAMPLES
