Applicable Industries：
Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
Showroom Location：
Egypt, United Kingdom, United States, Philippines, Indonesia, Thailand, Kenya, Argentina, South Korea, Sri Lanka, South Africa, Kazakhstan, Nigeria, Uzbekistan, Malaysia
Production Capacity：
400kg/h, 450kg/h, 500kg/h
Overview
Products Show
Product Parameter
Model | Capacity (KG/H) | Install Power (kw) | Over Size (M) | |
JXM-10 | 100 | 10 | 10*5*5 | |
JXM-20 | 200 | 15 | 15*5*5 | |
JXM-30 | 300 | 20 | 20*5*5 | |
JXM-40 | 400 | 25 | 25*5*5 | |
JXM-50 | 500 | 30 | 30*5*5 | |
JXM-60 | 600 | 35 | 35*5*5 | |
JXM-70 | 700 | 40 | 40*5*5 | |
JXM-80 | 800 | 45 | 45*5*5 | |
JXM-90 | 900 | 50 | 50*5*5 |
Flow Chart
ITEM NAME: DOUGH MIXER
CAPACITY:50-350KG PER BATCH MATERIAL: SUS304 FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY MAIN PARAMETERS: MIXING TIME: 15-20MINS WATER CONTENT: 11-14% WATER ADD: 30-35%
ITEM NAME: CONTINUOUS DOUGH ROLLING MACHINE
ROLLER WIDTH: 200-1500MM MATERIAL: ALLOY STEEL OR SUS304 FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM ROLLING SPEED: 7M-10M PER MIN MOTOR TYPE: SOLO OR COMPOUND TYPE

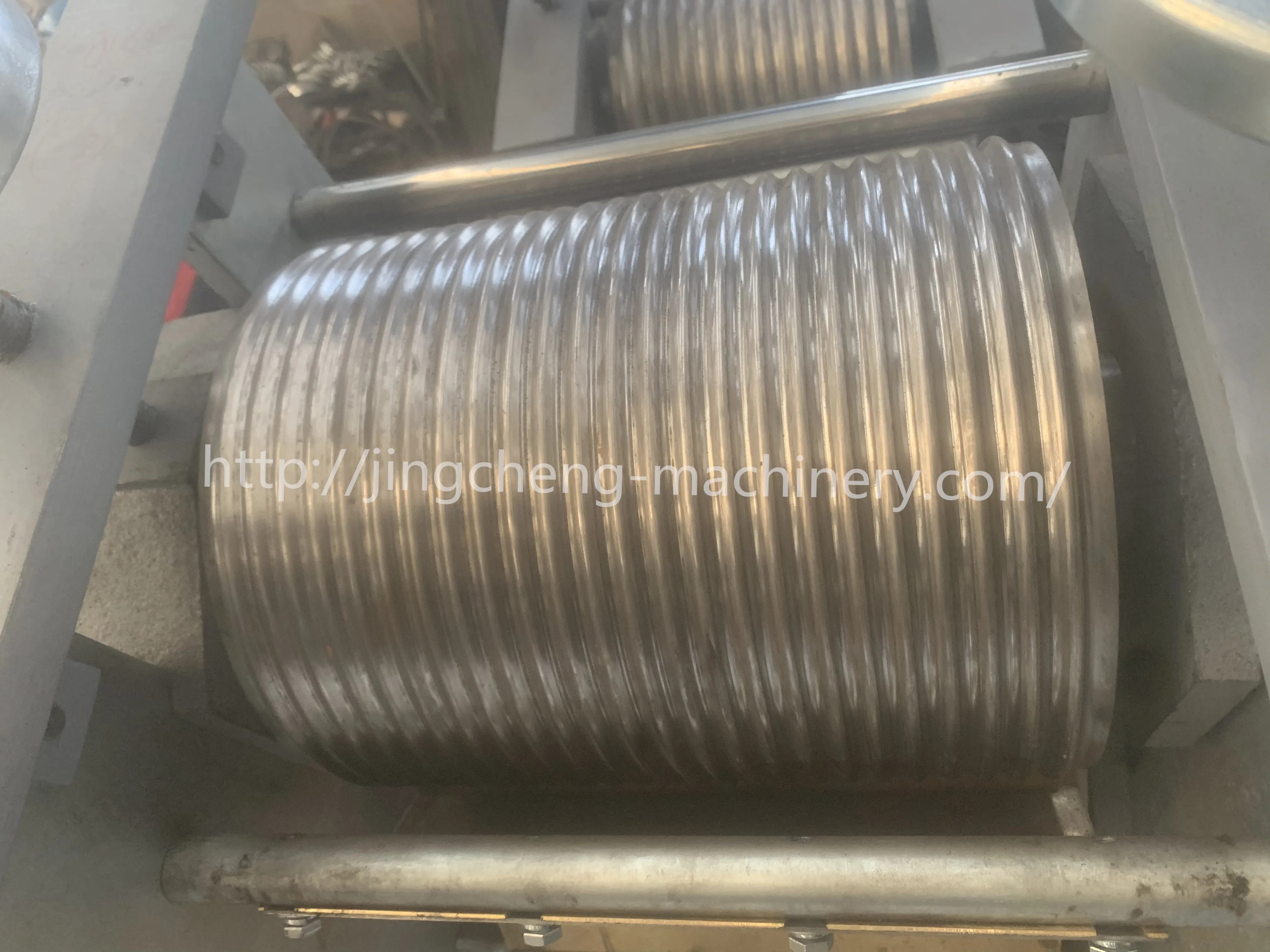

ITEM NAME: PATENT WAVED ROLLERS
ROLLER WIDTH: 200-1500MM MATERIAL: ALLOY STEEL OR SUS304 FUNCTION: TO ROLL THE DROUGH BY WAVE ROLLER FOR CHEWFUL AND STRENGTH MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM ROLLING SPEED: 7M-10M PER MIN MOTOR TYPE: SOLO OR COMPOUND TYPE WAVE SIZE ADJUSTABLE
ITEM NAME: NOODLE SLITTER
WIDTH:200-1500MM MATERIAL: SUS304 FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM SLITTER TYPE: ROUND AND SQUARE
ITEM NAME: NOODLE FIXED LENGTH CUTTER
WIDTH:200-1500MM MATERIAL: SUS304 FUNCTION: TO CUT NOODLES BEFORE BOILING MAIN PARAMETERS: CUT LENGTH ADJUSTABLE SPEED ADJUSTABLE

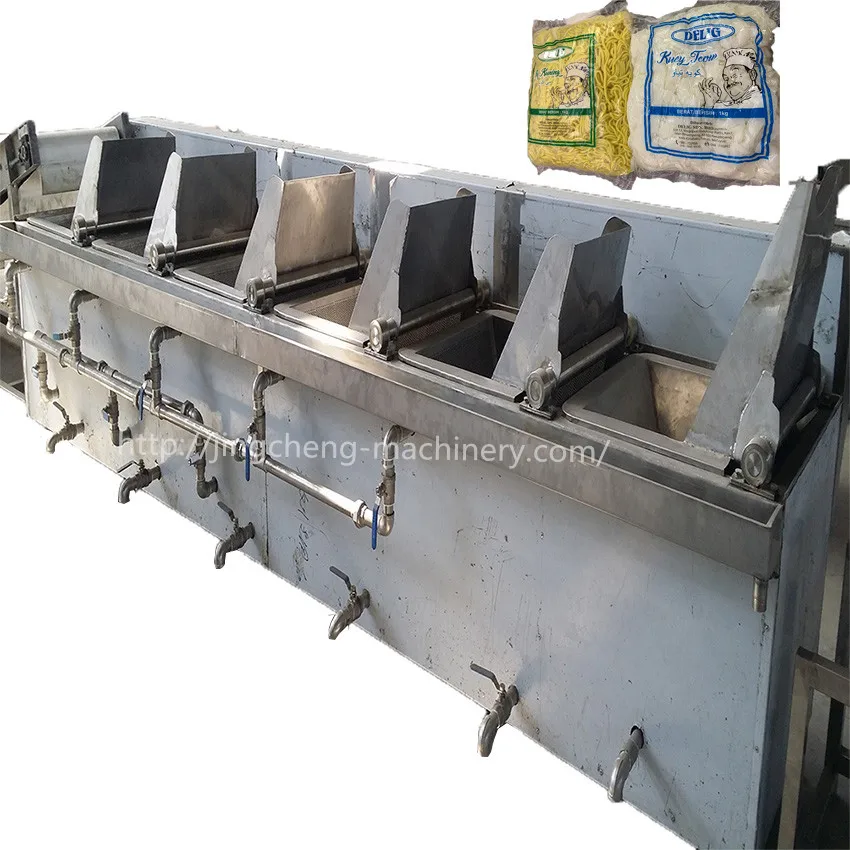

ITEM NAME: NOODLE BOILING MACHINE BUSKET TYPE
CAPACITY: 200-600KG PER TIME MATERIAL: SUS304 FUNCTION: TO BOIL NOODLES IN WATER IN DIFFERENT BUSKET MAIN PARAMETERS: BOILING BUSKET 5-8 UNITS BOILING TEMP: 95-100-105-80-60
ITEM NAME: NOODLE MESH COOLER
WIDTH:200-1500MM MATERIAL: SUS304 FUNCTION: TO COOL NOODLES AFTER BOILING MAIN PARAMETERS: FIVE LAYERS MESH RUNNING 0.37KG FANS ON TOP
