FRESH NOODLE MACHINE

Our vision is simple but bold – we aspire to create the supply chain of the future to help our customers navigate the food machinery and to make life better for one billion people in the supply chain.

Product Features and Uses

Automatic steaming noodle production line reduces the contact times between machine and human, eliminates the hidden danger of safety, and reduces the labor intensity of workers.Compact structure, easy operation, strong power, low noise, high efficiency.The fuselage adopts high quality steel and the roller adopts high strength alloy roller, which has high strength, high pressure, durability and no deformation.The thickness of the steamed noodles can be adjusted evenly, the surface is smooth and clean, the noodles are vertical, the soup is not pasted, the noodle is not sticky, the noodle is not continuously thin, and the taste is good.The products meet the requirements of national hygiene standards, and are ideal mechanical products for hotels, restaurants, food processing plants, unit canteens and individual catering industries.

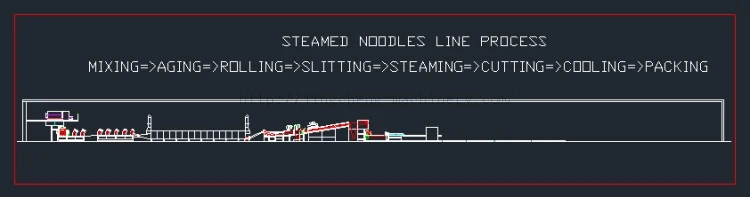

FLOWCHAT

We provide CAD drawings of our products. We can customize the production line according to your actual needs.We have a team of engineers with more than 10 years of work experience to provide you with the most professional services.

DETAILS IMAGES

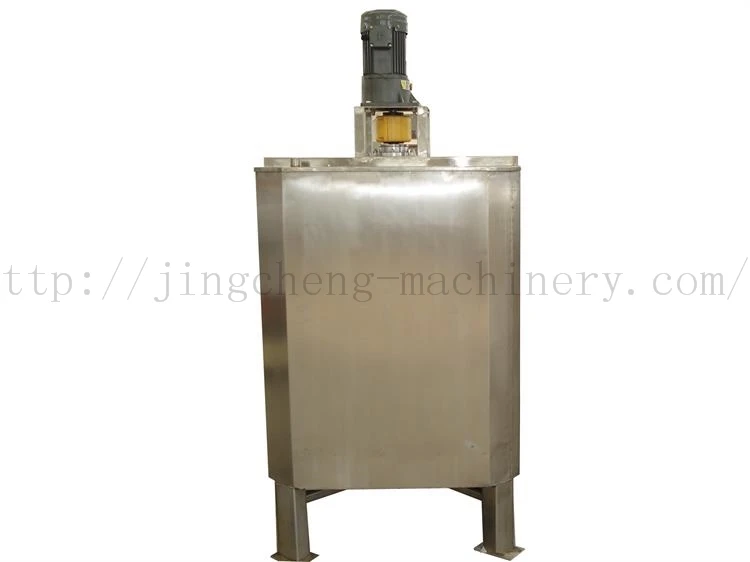

ITEM NAME: ALKALI MIXING TANK

  CAPACITY:500-1000KG PER TANK                           MATERIAL: SUS304/316
  FUNCTION: TO MIX WATER WITH SALT AND ADDITIVES
  MAIN PARAMETERS: MIXING TIME: 10MINS         WATER CONTENT: PURED WATER BETTER

ITEM NAME: RATION FEEDING TANK

   CAPACITY:50-150KG PER BATCH                                          MATERIAL: SUS304/316
   FUNCTION: TO PUMP THE WATER TO MIXER BY RATION CONTROL
   MAIN PARAMETERS:ELECTRIC VALVE CONTROL              FEEDING AUTOMATICALLY

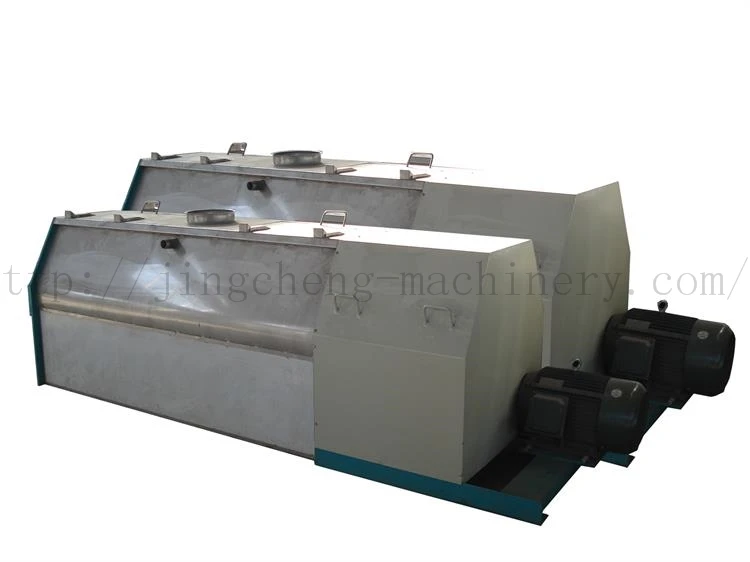

ITEM NAME: DOUGH MIXER

   CAPACITY:50-350KG PER BATCH                                                     MATERIAL: SUS304
   FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
   MAIN PARAMETERS: MIXING TIME: 15-20MINS                           WATER CONTENT: 11-14%
   WATER ADD: 30-35%

ITEM NAME: CONTINUOUS DOUGH ROLLING MACHINE

   ROLLER WIDTH: 200-1500MM                                                        MATERIAL: ALLOY STEEL OR SUS304
   FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS
   MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM     ROLLING SPEED: 7M-10M PER MIN
   MOTOR TYPE: SOLO OR COMPOUND TYPE

ITEM NAME: NOODLE SLITTER

   WIDTH:200-1500MM                                                                  MATERIAL: SUS304
   FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES      MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM
   SLITTER TYPE: ROUND AND SQUARE

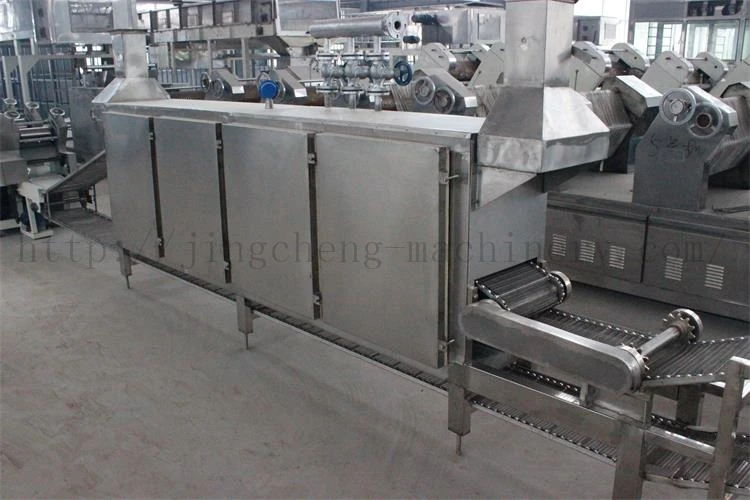

ITEM NAME: NOODLE CONTINUOUS STEAMER

   WIDTH:200-1500MM                                                            MATERIAL: SUS304
   FUNCTION: TO STEAM NOODLES CONTINUOUSLY        MAIN PARAMETERS: STEAM TEMP:110C
   STEAM TIME: 180S
   STEAMER TYPE: 1 LAYER OR 3 LAYER

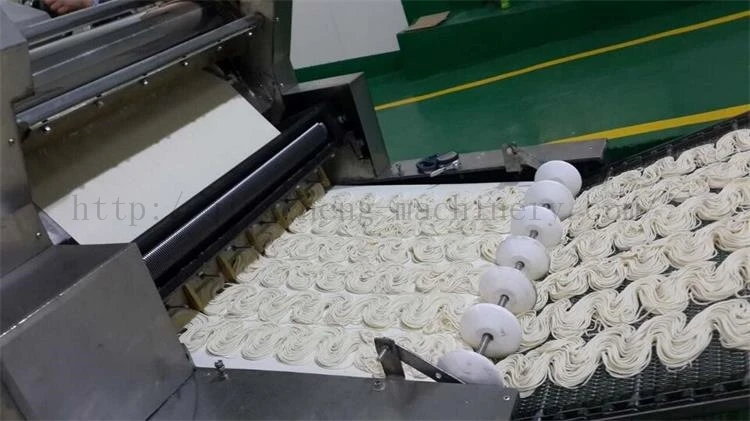

ITEM NAME: NOODLE CUTTER

   WIDTH:200-1500MM                                                                 MATERIAL: SUS304, SLICON PALLET
   FUNCTION: TO CUT NOODLES BEFORE PACKING               MAIN PARAMETERS: CUT SPEED: 20-70CUTS PER MIN
   CUT LENGTH ADJUSTABLE
