Applicable Industries：
Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
Showroom Location：
Egypt, United Kingdom, United States, Philippines, Indonesia, Thailand, Kenya, Argentina, South Korea, Sri Lanka, South Africa, Kazakhstan, Nigeria, Uzbekistan, Malaysia
Production Capacity：
250kg/h, 350kg/h, 400kg/h, 450kg/h, 500kg/h, 600kg/h
Overview
Product Parameter
Model | Dough Width(mm) | Main roll size(mm) | Capacity (KG/H) | Power | Weight | Overall Size(mm) |
MT7-260 | 260 | Φ138*260 | 200-220 | 4kw | 910kg | 2900*680*1370 |
MT7-300II | 300 | Φ138*300 | 240-260 | 4kw | 980kg | 2900*680*1370 |
MT7-330 | 330 | Φ138*330 | 260-280 | 4kw | 1060kg | 2900*700*1370 |
MT7-350 | 350 | Φ138*350 | 280-300 | 4kw | 1150kg | 2900*730*1370 |
MT7-450 | 450 | Φ138*450 | 450-500 | 11kw | 4.8T | 6300*900*1500 |
MT8-550 | 550 | Φ138*550 | 650-700 | 20kw | 5.6T | 7400*1000*1500 |

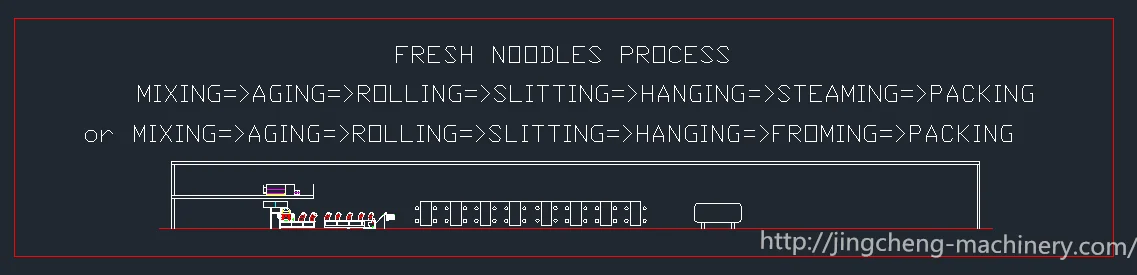

Flow Chart

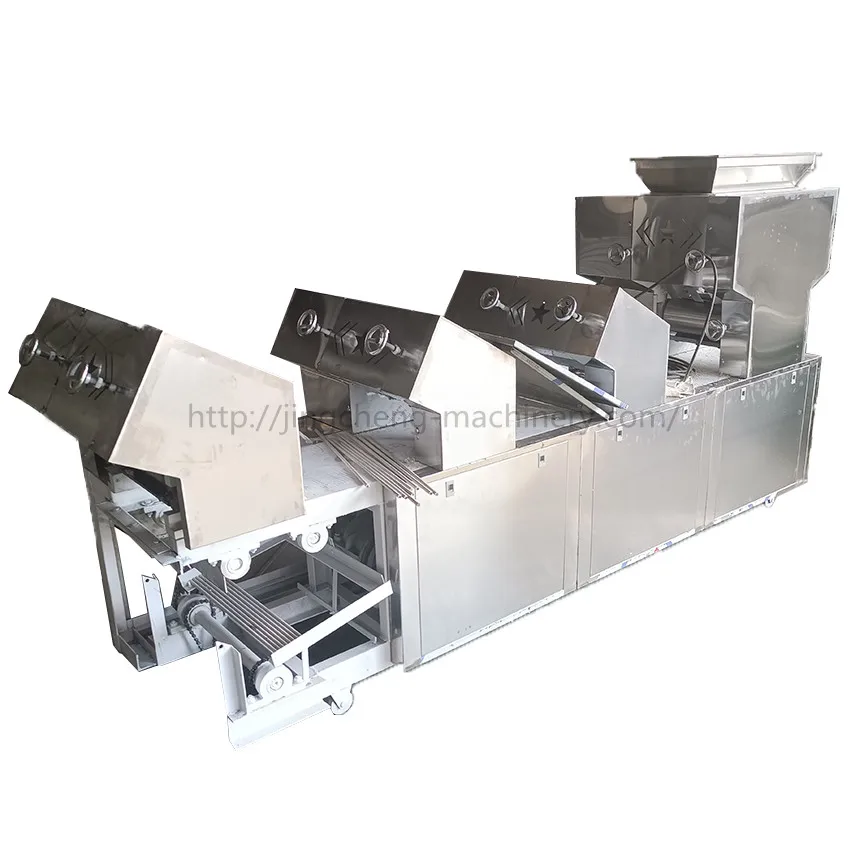

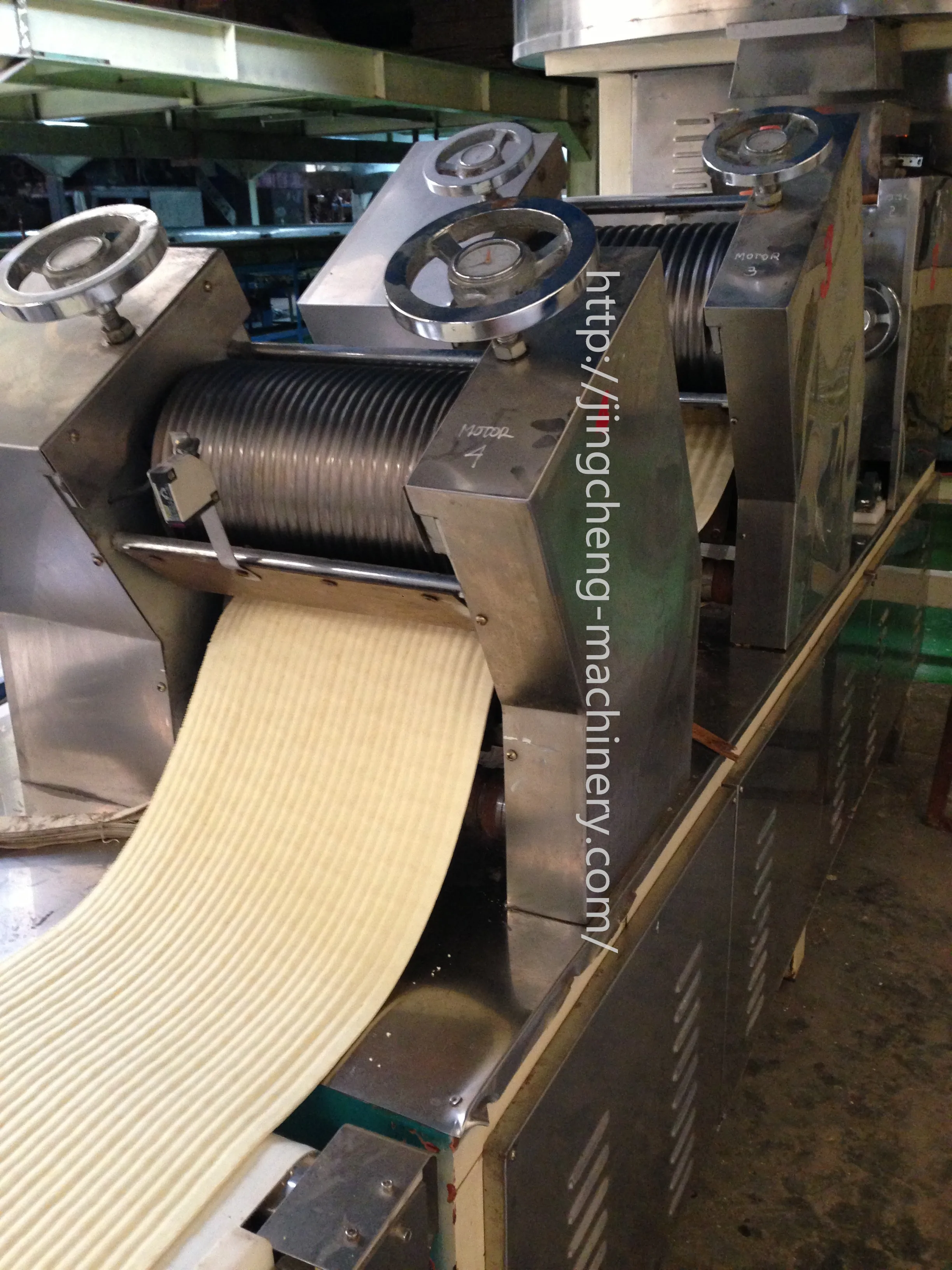

ITEM NAME: CONTINUOUS DOUGH ROLLING MACHINE
ROLLER WIDTH: 200-1500MM MATERIAL: ALLOY STEEL OR SUS304 FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM ROLLING SPEED: 7M-10M PER MIN MOTOR TYPE: SOLO OR COMPOUND TYPE

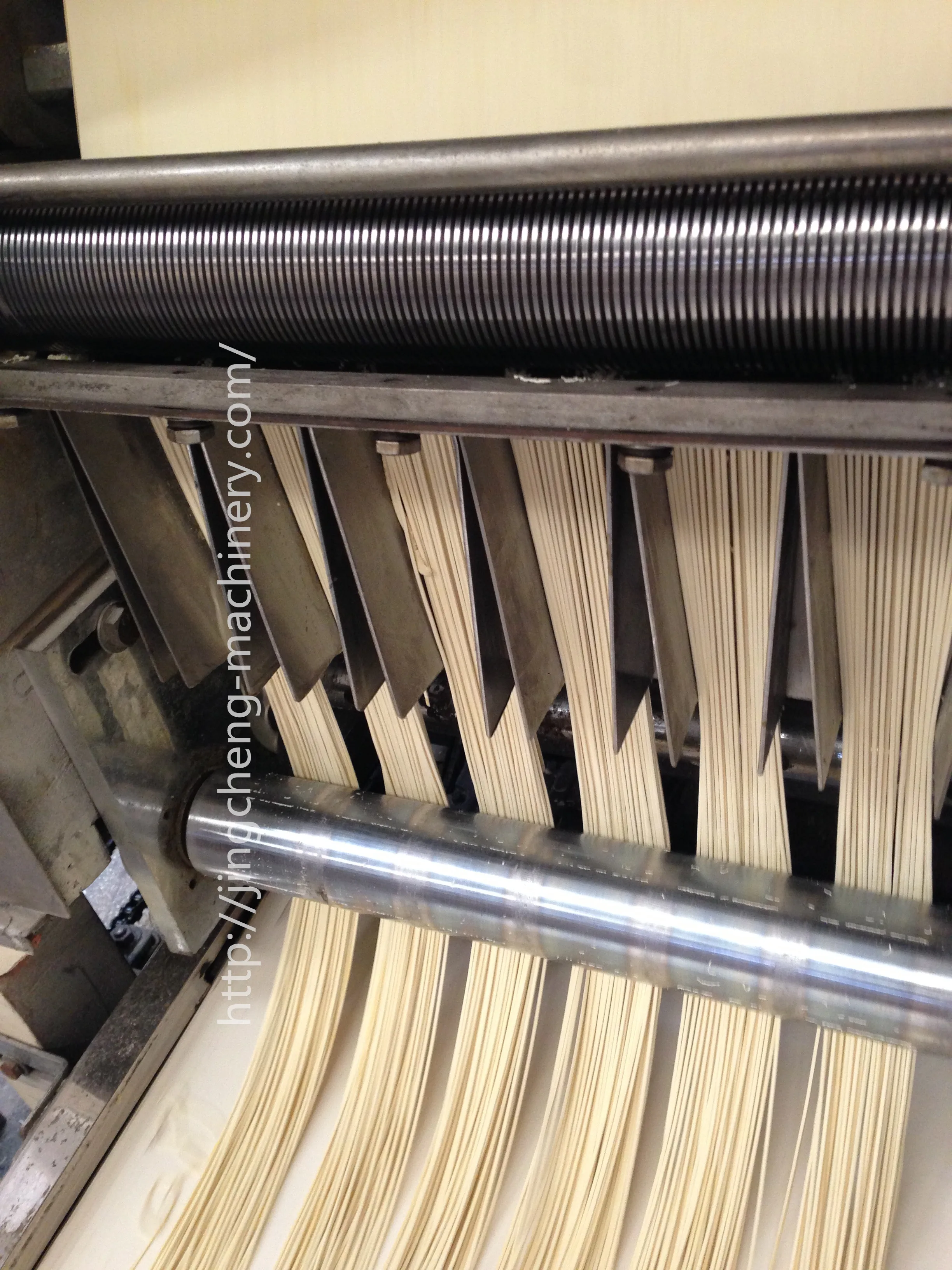

ITEM NAME: NOODLE SLITTER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES
MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM
SLITTER TYPE: ROUND AND SQUARE
ITEM NAME: NOODLE SLITTER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES
MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM
SLITTER TYPE: ROUND AND SQUARE

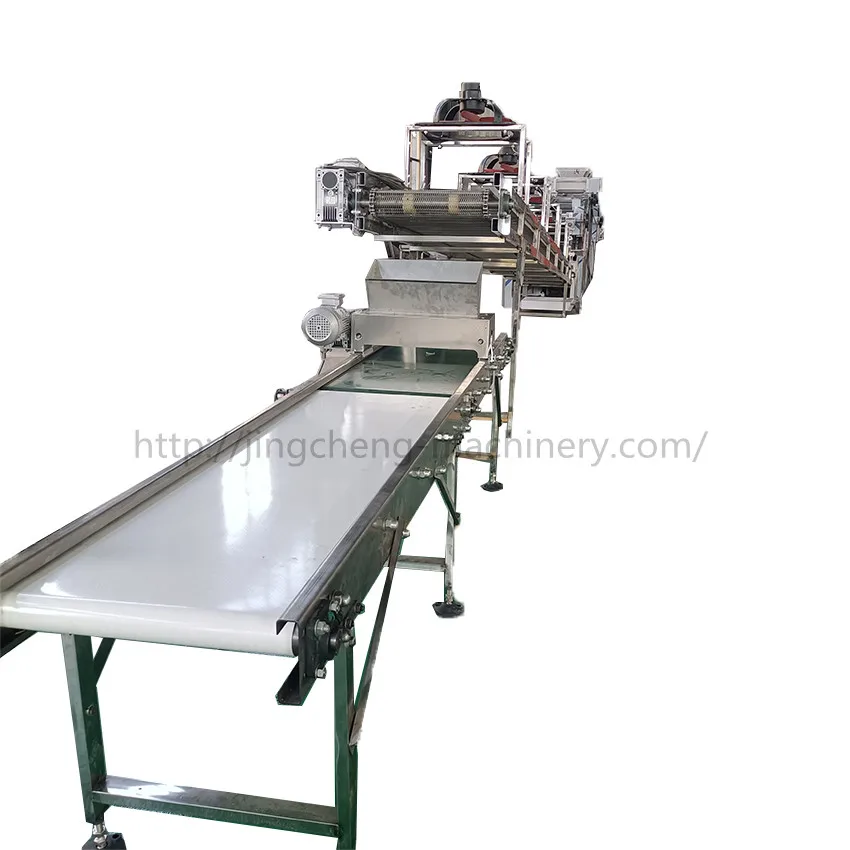

ITEM NAME: PACKING CONVEYOR
WIDTH:200-1500MM MATERIAL: SUS304 FUNCTION: TO PACK THE NOODLE EASLIY MAIN PARAMETERS:30-500G PER PC
ITEM NAME: PACKING CONVEYOR
WIDTH:200-1500MM MATERIAL: SUS304 FUNCTION: TO PACK THE NOODLE EASLIY MAIN PARAMETERS:30-500G PER PC

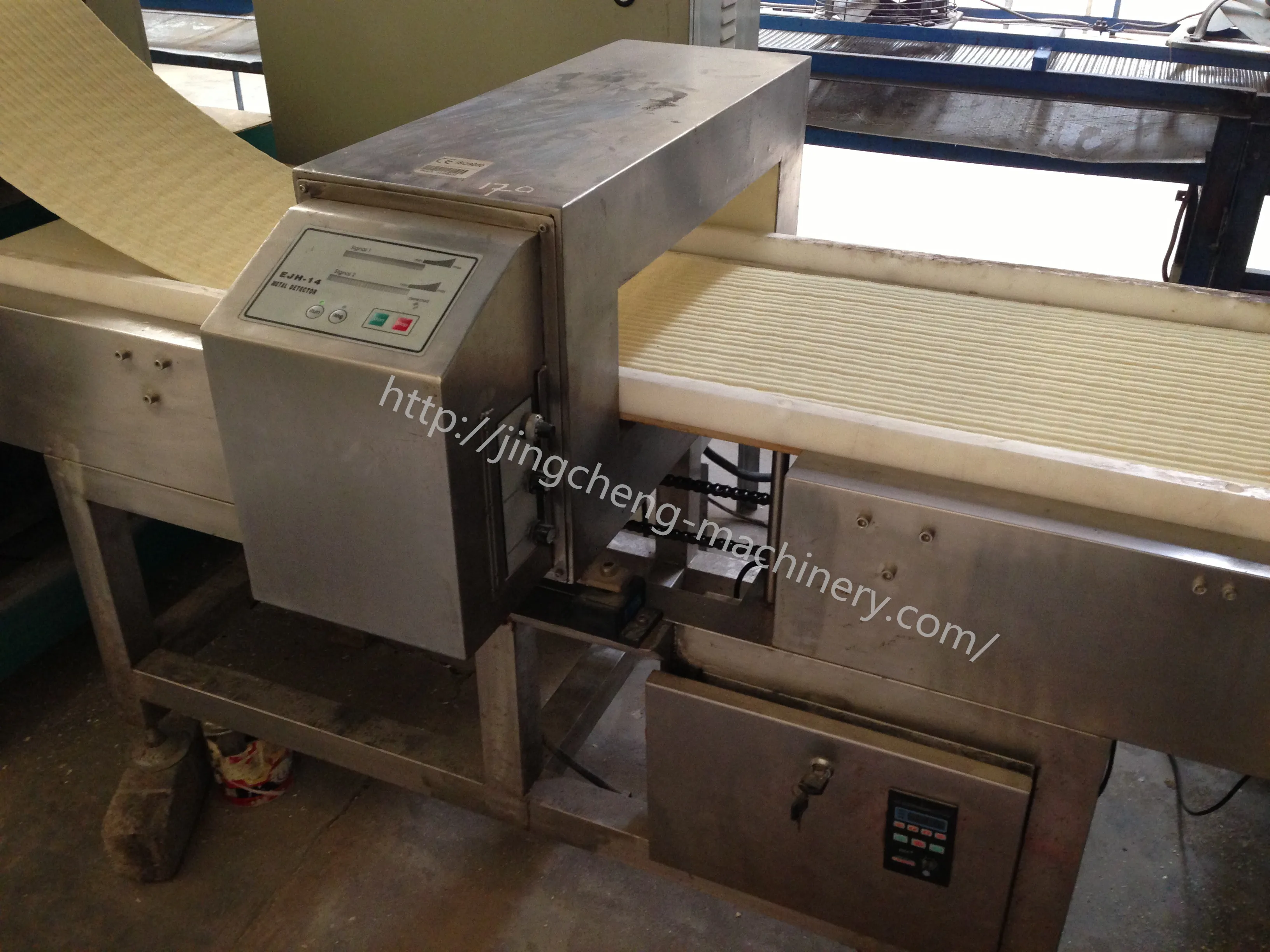

ITEM NAME: METAL DETECTOR
WIDTH: 200-1000MM MATERIAL: SUS304 FUNCTION: TO DETECT METAL IN DOUGH SHEET FOR FOOD SAFTY
MAIN PARAMETERS: AUTO STOP IF RED LIGHT

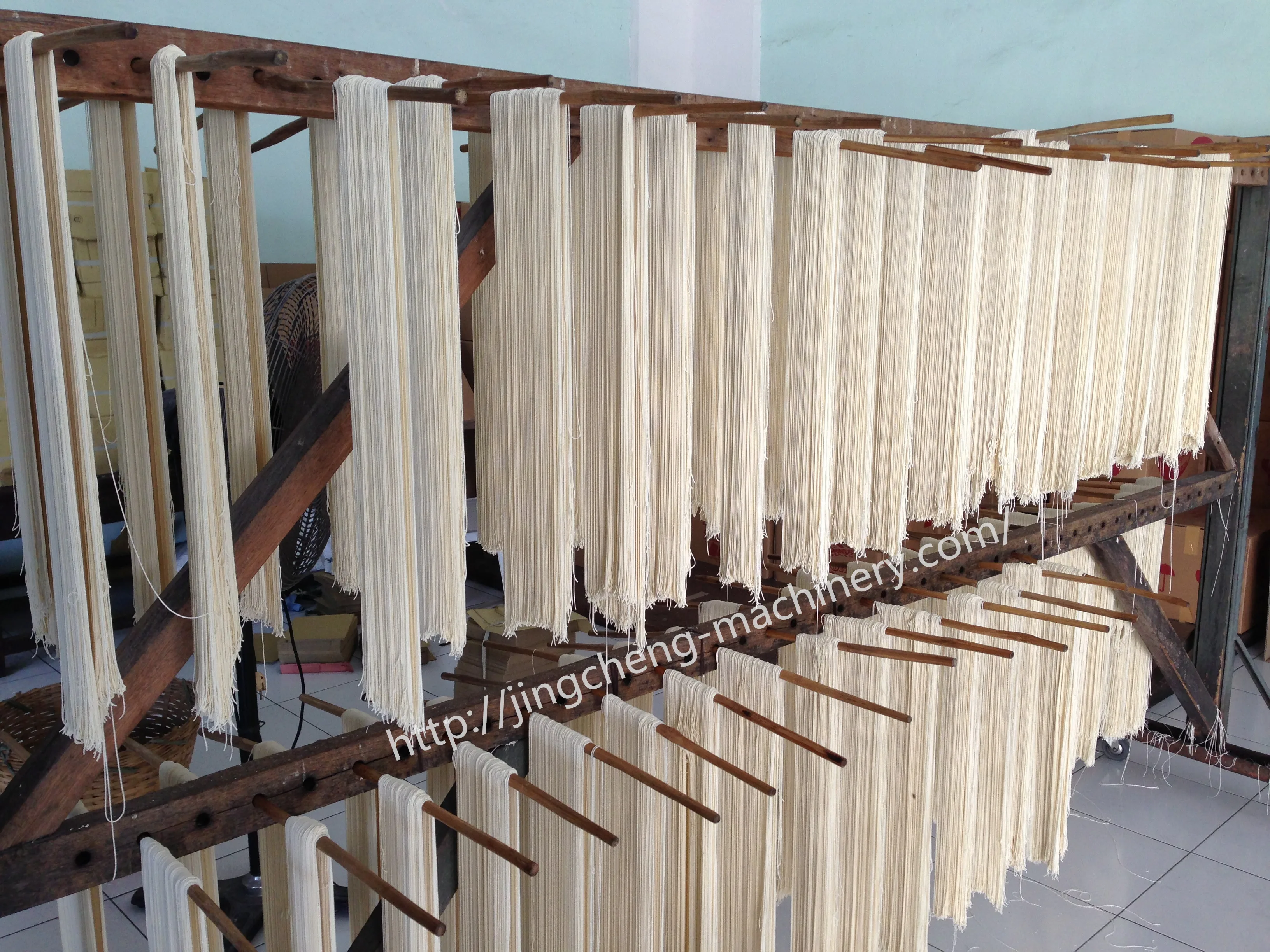

ITEM NAME: NOODLE HANGER
SIZE: 50-300G PER PC MATERIAL: SUS304 FUNCTION: TO MAKE NOODLE DRY ON SURFACE MAIN PARAMETERS:1 HOUR
ITEM NAME: NOODLE MOULDING
SIZE: 50-300G PER PC MATERIAL: SUS304 FUNCTION: TO SHAPE THE NOODLE BY MOULD BEFORE DRYING MAIN PARAMETERS: 4 IN 1 OR 6 IN ONE SQUARE OR ROUND TYPE
